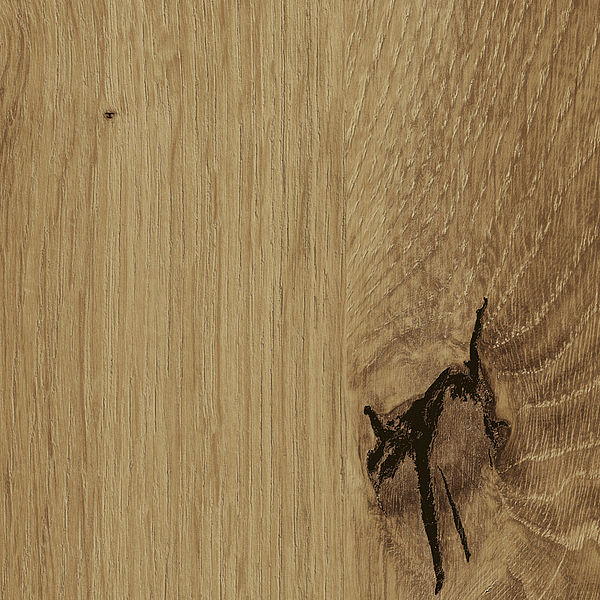

Artisan Oak NW
R20315
Artisan Oak NW
Quadra
HPL MDF Backpanel
HPL Upstand
38mm Quadra
Quadra
HPL MDF Backpanel
HPL Upstand
38mm Quadra
Technical Information
DUROPAL WORKTOP COLLECTION 2025-2028
57 exciting decors - 33 in 38mm postformed worktops, 12 in contemporary 20mm square-edged worktops, and 12 in ultra-modern 12mm solid core compact worktops.
Quadra profile
The Duropal Quadra profile, fashionable yet tried and tested, offers you unique product features and is available in this collection in 33 colourways.
- 3 mm radius
- available as 38mm postformed edge
- core material: ClassicBoard P2 TSCA. Low emission particleboard core, type P2 conforming to EN 312.
Drip groove
All worktops with a Quadra profile feature a unique v-groove seal which has been patented specifically for Duropal Worktops. This seal is designed to ensure a maximum of protection against moisture and steam.
POSTFORMED WORKTOPS DIMENSIONS
| Length | Thickness | Width |
|---|---|---|
| 3,050 mm | 38 mm | 600 mm - postformed one long edge (worktop) |
| 4,100 mm | 38 mm | 600 mm - postformed one long edge (worktop) |
| 4,100 mm | 38 mm | 670 mm - postformed two long edges (breakfast bar) |
| 4,100 mm | 38 mm | 900 mm - postformed two long edges (breakfast bar) |
Square edged
A slimline worktop made up of a particleboard core and featuring decorative Duropal HPL on both faces. Both longitudinal edges of the worktop feature a matching laser edge.
- available as 20mm edge
- available in a selection of 12 decor
- core material: ClassicBoard P3. Particleboard core, type P3.
SQUARE EDGED WORKTOPS DIMENSIONS
| Length | Thickness | Width |
|---|---|---|
| 4,100 mm | 20 mm | 640 mm - square edged two long edges (worktop) |
| 4,100 mm | 20 mm | 900 mm - square edged two long edges (breakfast bar) |
Duropal Compact Worktop
A thin worktop with extraordinary properties. With its simple style it reflects the latest trends in interior design. A worktop with offers extraordinary durability, reliable functionality and timeless elegance.
- available in 12mm with white, grey and black core
- available in a selection of 12 decors
Compact Worktop Bevelled Edge
12 Compact Worktops feature machined bevelled edges as shown in the above diagram.
Worktops (4100 x 640 x 12mm) include the bevelled detail on the front long edge only.
On breakfast bars (4100 x 950 x 12mm), the bevelled detail appears on both of the two long edges.
Master sheet (4100 x 1300 x 12mm) unfinished on all edges.
COMPACT WORKTOP DIMENSIONS
| Length | Thickness | Width |
|---|---|---|
| 4,100 mm | 12 mm | 640 mm - bevelled one long edge |
| 4,100 mm | 12 mm | 950 mm - bevelled two long edges |
| 4,100 mm | 12 mm | 1,300 mm - unfinished on all edges |
General guidelines for processing Duropal Worktops
- Always use sharp tools.
- Circular saw blades with flat chamfer teeth (FZ/FA) or alternating teeth (WZ) achieve best results.
- Reduce the feed rate when cutting through the postformed edge.
- Spiral router cutters achieve best results.
- For finishing edges with Duropal HPL edging strip, trim and finish with 300 grit sandpaper.
This information is for guidance only and is based on our experiences with the processing of our products, it does not give any guarantee of final results; guidelines should be adapted to the situation depending on the tools available. Your tool supplier should be consulted to assist in the selection of the correct tools for best results. This information is not intended to and shall not be deemed to constitute a guarantee by us of any kind or character whatsoever.
Duropal ... quality you can take for granted.
All constituent parts of our worktops are manufactured within the Pfleiderer Group, therefore giving us complete quality control over our finished products. Duropal worktops are the perfect alternative to acrylic based, granite and stone worktops at a fraction of the price. Our comprehensive selection of decors offers opportunities from the most modern applications to the more traditional. 57 exciting decors – 33 in the unique 38mm Quadra profile, 12 in a slimline 20mm Square Edged and 12 in an ultra-modern 12mm solid core Compact worktop.
With Duropal you're covered from all directions ...
High Pressure Laminate (HPL) Upstands
Surfaced in genuine Duropal high-pressure laminate produced with P3 moisture resistant chipboard core and available in the following size:
- 4,100x120x20mm (3mm postformed radius)
An ideal finishing touch for your Duropal high-pressure laminate postformed and square edged worktops offering another cost-efficient and hygienic alternative to tiling. Available to match all Quadra postformed worktop decors and 20mm square edged worktop decors.
Duropal HPL Compact Upstands
Duropal HPL Compact Upstands are available in the following size:
- 4,100x120x12mm (top edge bevelled)
This accessory offers an affordable and hygienic alternative to wall tiling. Available to match the 12 decors in the Duropal Compact Worktop range.
HPL MDF Back Panels
Consisting of an 8mm E1 medium density fibreboard (MDF) core surfaced with genuine Duropal high-pressure laminate manufactured to EN 438. Available to match all decors, in the following size:
- 4,100x640x9mm nominal (8mm MDF core)
Please ensure that due care is taken to correctly seal the product to prevent moisture ingress. For installation behind hobs, check with hob manufacturer‘s fitting instructions to ensure that suitability and distance requirements are met.
Delivery Information
Because our products come from a range of manufacturers you may have multiple delivery slots and costs. Once you have spent over £500 all delivery costs will be waived and free delivery will apply.
Delivery Costs
Small Product £7.99
Example: Tap Box
Medium Product £15.98
Example: Sink Box
Large Product £25.00
Example: Single Oven
Extra Large Product £59.99
Example: Worktop
Spend Over £500
Free Delivery On All Goods Supplied
Delivery Tracking
We will send you the relevant tacking information when your delivery is out for delivery from your local couriers via email.
Delivery Timescale
We aim to delivery all purchased products as fast as we can however different products types can be delivered at different times. Delivery times are listed on each individual product before purchase. If you are unsure please contact our support team 01637 520478
